The Connect Admin module allows users to view all administrative information related to your Connect account, while administrators also have the ability to edit certain information.


Definitions

Administrators and users

If you are a new customer who starts using Connect, the designated administrator receives an invitation e-mail to set up the Connect account. The role of this administrator is 'company administrator'. There only is one such administrator. After logging in for the first time, the administrator’s initial tasks are:


All administrators can optionally:


Normal users can view information, but cannot make changes.


Companies and subscriptions

Most Connect accounts have one Company with one Subscription.

International customers can have multiple companies for their different production plants, or a different subscription per plant. A company can also have multiple subscriptions to separate different production workgroups, machine types, or for a subscription for testing purposes.


Opening Connect Admin

Open Connect Admin with this link: https://admin.texconnect.io/


In the top right corner, you see your user name. When you hover, you see your e-mail address and the features that you have. You can also Logout here.

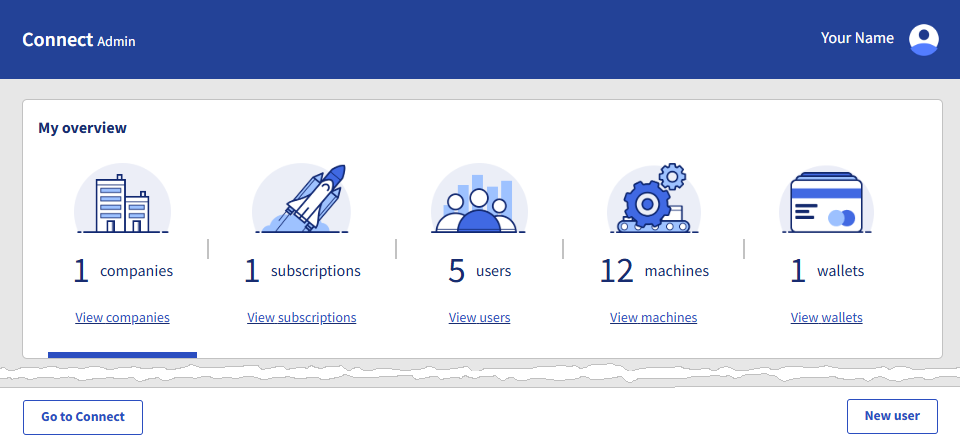

Connect Admin consists of different views with information about your Connect account. In My overview, click a View ... button to open a view.


With the buttons at the bottom, you can Go to Connect (left side) and create a New user (right side).



Connect Admin views

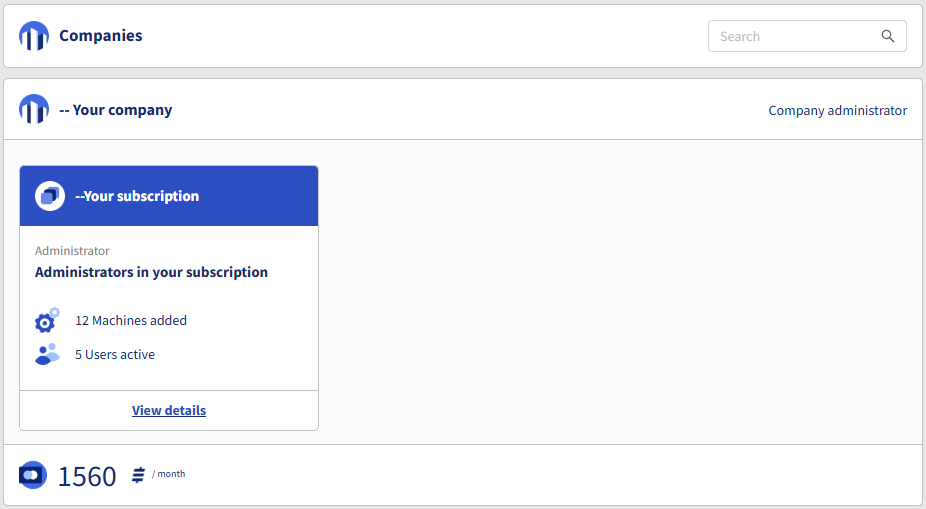

Companies

  • The header shows the name of the company (left side) and the company administrator (right side).
  • The middle section shows a box per subscription with:
    • Name of the subscription.
    • Names of the subscription administrators.
    • Number of machines.
    • Number of active users.
    • You can click View details which is the same as clicking a subscription in the Subscriptions view.
  • The bottom line shows the amount of credits that the company uses (if you work with credits).

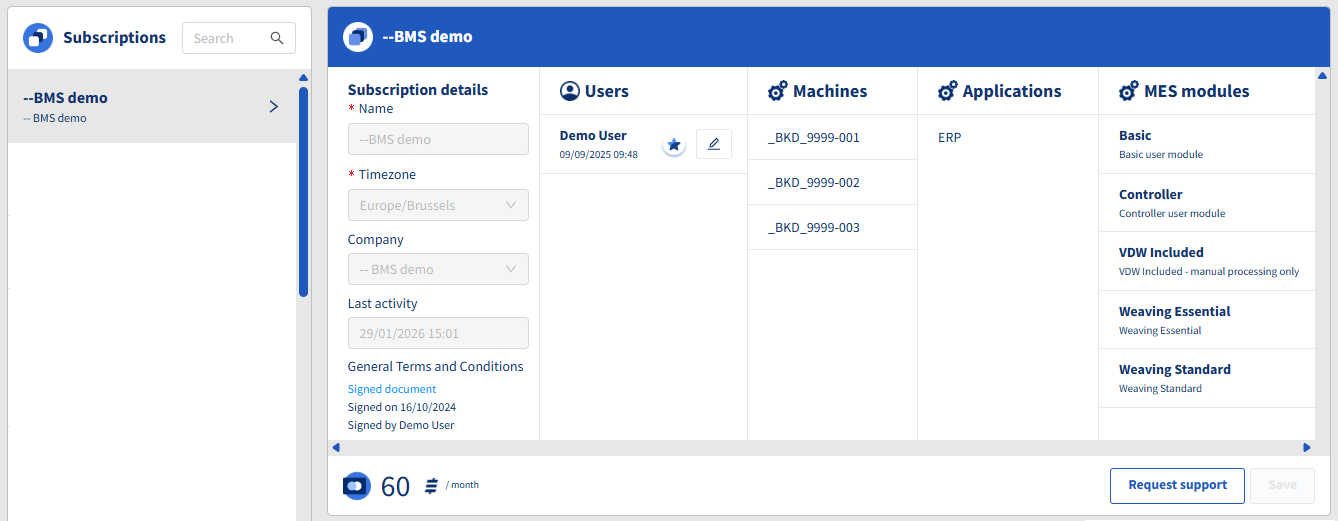

Subscriptions

Click a subscription to see:

  • Subscription details: The company administrator can here view the signed terms and conditions with the sign date.
  • Users: Lists the users. Subscription administrators are marked with a star .
    Click the Edit button  to see user details. Administrators can change a user into a subscription administrator or vice versa, and define features for users.
  • Machines: Lists the machines that are included in your Connect account are added by BMSvision according your contract with BMSvision.
  • Applications: Lists additional applications that are integrated in your Connect account according your contract with BMSvision.
  • MES modules: Lists the features that are included in your Connect account according your contract with BMSvision.
  • The bottom line shows the amount of credits that the subscription uses (if you work with credits).



The button Request support (visible by administrators only) is used by our service engineers.
If you need support, create a ticket (see How to create a ticket).

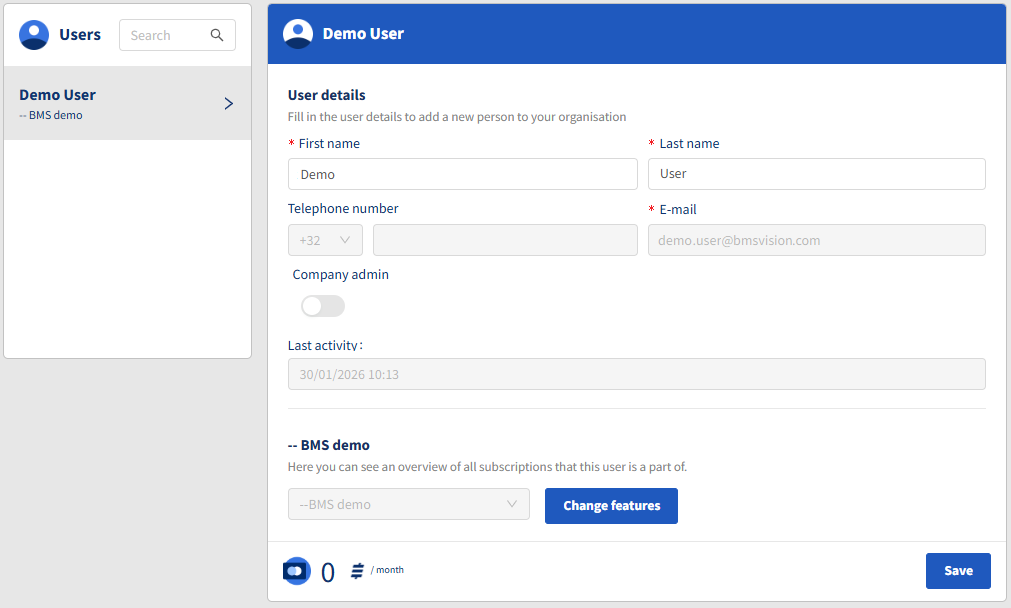

Users

Click a user to see the User details and the subscriptions the user is part of.
Administrators can edit user details and change the user's features for each subscription.

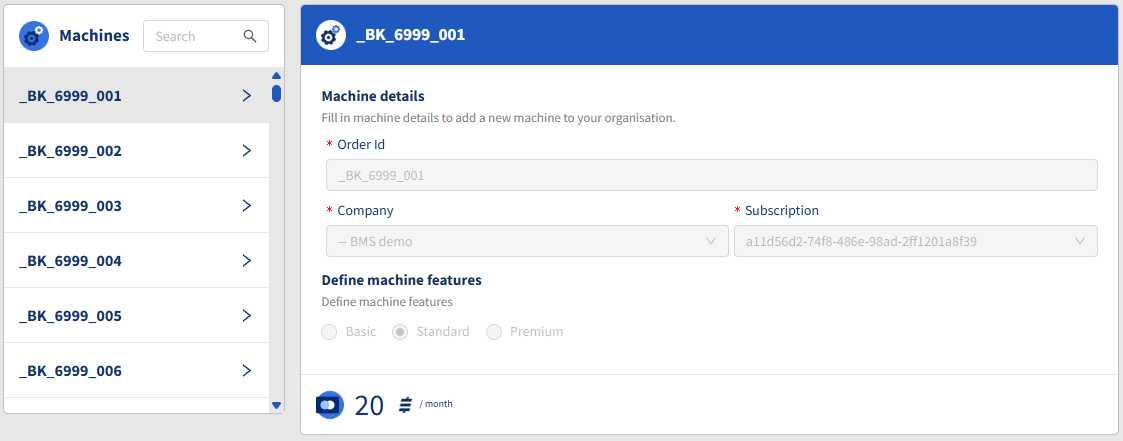

Machines

Click a machine to see following information:

  • Order Id of the machine.
  • Company and Subscription the machine is part of.
    If a machine should be moved to another company or subscription, contact BMSvision via a ticket (see How to create a ticket).
  • Machine features: Determines the Connect feature level of the machine.

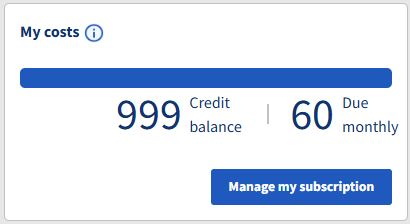

Wallets

Click a subscription to see more information about the financial side of your Connect account. Select a subscription to see this information.



If you use credits, then you will see:

  • Credit balance: How many credits remain in your wallet.
  • Due monthly: How many credits are used per month by the selected subscription.
    Click  to see the credit use of the components of your subscription.
