The Planning Board (SCHEDULING section) provides additional information about machines, runs and orders in a dedicated details pane. While a details pane is open, you can click another item to quickly view its details without closing the pane.
Refer to the main article Planning board for other information.

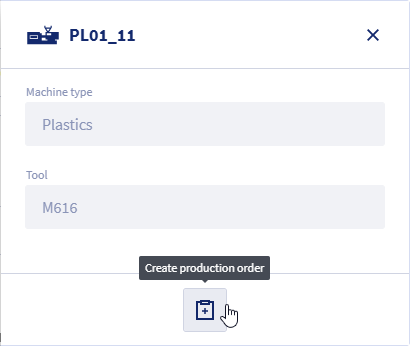

Machine details
To see more details about a machine, click a machine. From this detail pane, you can create production orders.

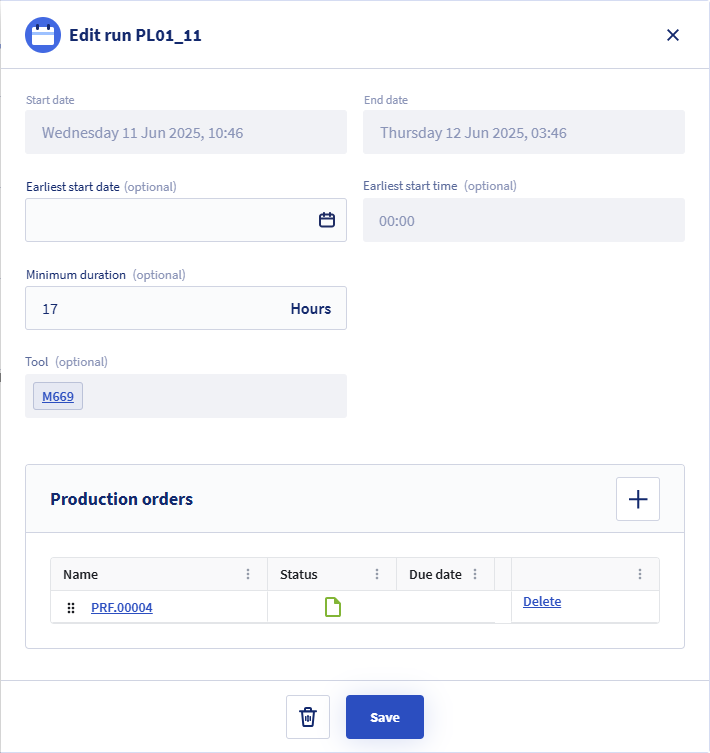

Run details
To view details about the run, click the header of a planning bar.
In this run detail pane, you can do the following:
- Click the shared item (e.g. tool M669) or any of the listed orders (e.g. PRF.00004) to see their specific information.
- Optionally change the Earliest start date and time, Minimum duration. If the total duration of the orders in a run is lower than the Minimum duration, a blank part is shown in the bar:
- Delete the run. Its orders are moved to the Needs attention list as unplanned orders.
- Add unplanned production orders. Only the orders that have the same shared item are shown.
- Delete orders that are not yet started. They are moved to the Needs attention list as unplanned orders.

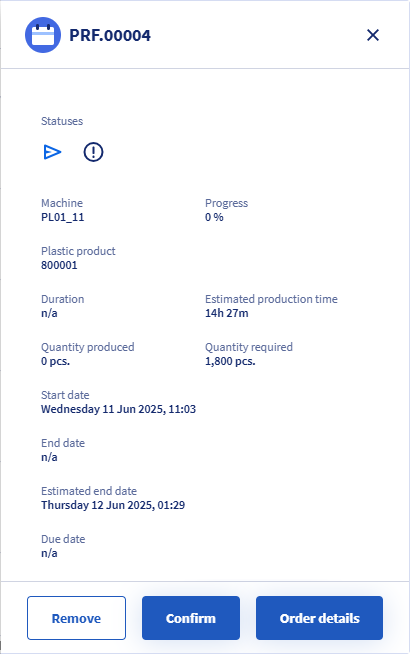

Order details
To view details about an order, click the order in the planning bar.
In this order detail pane, you can:
- Remove the order if it is not yet started. It is moved to the Needs attention list as an unplanned order.
- Open the order in the Production order module.
