A machine type can be used to group and classify machines based on shared characteristics, such as the brand, series, technology, capacity, size, product type. Machine types are used for example to match compatible products and tools (plastics), for declarations.


We have two levels:

  • The main machine type is the one that is selected when a new machine is added via Plant view. It defines the available configuration settings and the icon. Example:


    Note: In Reports, this is the Kind field in the Filters.

  • The machine subtype is the one that is defined after selecting the main machine type. Subtypes are only available for the machine types Weaving machine, Tuft, Winder, Plastics. Example:


    This article is about the machine subtype.


List

The Machine types module under Equipment (section RESOURCES) shows the defined items for both levels.

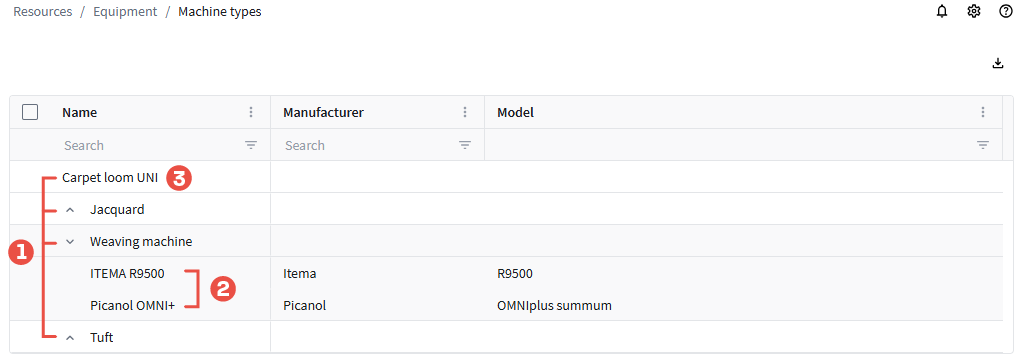

Example:



  1. Main machine type. An expand/collapse arrow is shown if it contains machine subtypes.
  2. Machine subtype
  3. No machine subtypes defined. Note the missing expand/collapse arrow.


Creating machine subtypes

You can create machine subtypes while configuring a new machine (see Configuring a machine).

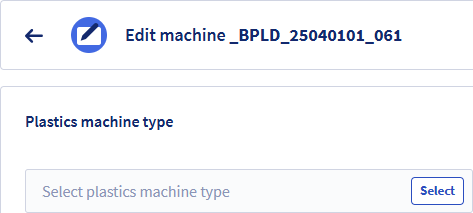

  1. In the Edit machine dialog, click the Select button. Example:



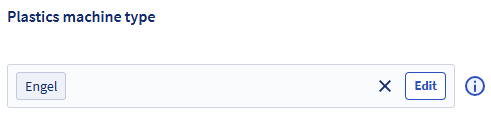

  2. Click the Create new button .

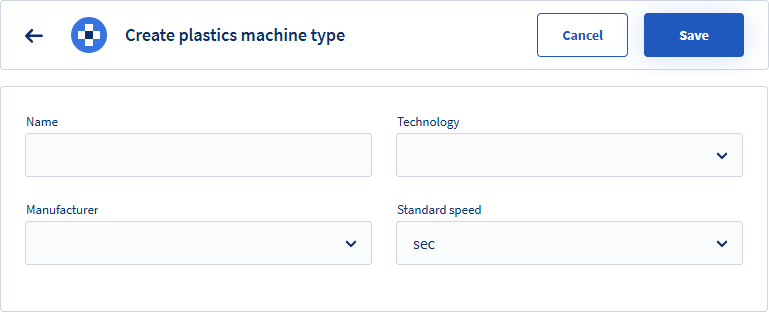

  3. Enter the fields.


Fields

Example: plastics.


* = required


FieldApplies toDescription
NameAll *The unique name or label for the machine type.
TechnologyWeaving machine, Plastics *

Weaving machine: Defines the method by which the weft yarn is inserted during the weaving process.

  • Air jet: Uses a high-speed jet of air to propel the weft yarn through the shed.
  • Projectile: Uses a small projectile to carry the yarn across the loom.
  • Rapier: Uses one or two rapiers (metal rods or tapes) to insert the yarn.
  • Water jet: Propels the weft yarn using a fine jet of water.


Plastics: Specifies the production process the machine type is designed for.

  • Molding: Injection or blow molding
  • Extrusion: Continuous part production (e.g., pipes, sheets)
  • Thermoforming: Forming heated plastic sheets
  • Palletizer: Automated pallet stacking systems
WidthWeaving machine *, Tuft *Defines the maximum width of the fabric that the machine can produce.
ManufacturerWeaving machine, Tuft, Winder, Plastics *Select the company that built the machine from the predefined list.
ModelWeaving machine, Tuft, WinderSelect the machine model from the predefined list.
Standard speedPlasticsDefines how the machine’s production speed is measured and displayed.
  • sec: Use when production is measured by cycle time. This is the time required per part, per shot (single mold) or per fixed length (extrusion).
  • rpm/ppm: Use when production is measured by output rate per minute (rotations or parts per minute).
GaugeTuft *
Specifies the distance between adjacent needles.
