The Filters pane on the right side of reports in the Trends & reports module (section MONITORING) lets you focus on specific data by narrowing the information, based on various criteria, like a specific date range or a selection of machines.


Filter settings apply to all pages of the report type simultaneously.

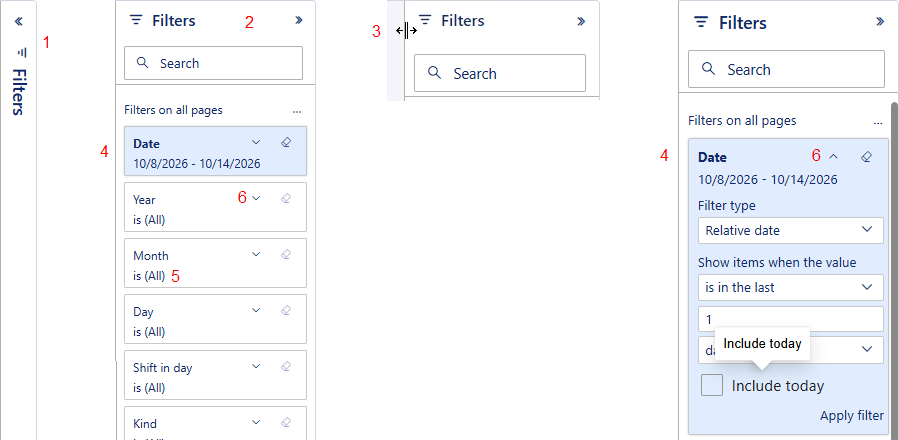

Using the Filters pane

  1. Click or the title to open the Filters pane.

  2. Click or the title to close the Filters pane.

  3. The width of the filter pane can be adapted.

  4. Active filters are highlighted.

  5. Inactive filters include all values of the field.

  6. Click  to open a filter and   to close the filter.

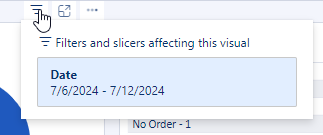

To see which filters are applied, hover the icon  of any visual, or open the filter pane to view the details.



Available filters

The reports can be filtered on following fields:

  • Date: Any date and time range, relative date and time, and include or exclude today.
  • Year: Calendar years.
  • Month: YYYY/MM.
  • Day: YYYY/MM/DD.
  • Shift in day: YYYY/MM/DD with shift name.
  • Kind: Machine kind.
  • Machine: Machine name.
  • Group: Machine group.
  • Product: Product name.
  • Operator: Operator name.
  • Shift: Shift name.


The above list is the default order. The filters can be sorted alphabetically via More options.



Use the Search box to find a field to filter.


Setting filters

One or more filters can be active at the same time. A filter reduces the number of options for a next filter, e.g. if the Year filter selects a particular year, then the Month filter will only show the months of that year.


To set a filter:

  1. Click
     to open a filter.
  2. Select a Filter type.
    All filters have the filter types Basic filtering and Advanced filtering.
    The Date filter also has the filter types Relative date and Relative time.
    Particular options appear according the selected type,
  3. Select or enter options.
  4. Click Apply filter.


To clear a filter, click the Clear filter button .


Filter types

Three types of filters exist:

  • With a basic filter, you simply select the values you wish to see in the report.
  • With the advanced filter, you can use all kinds of comparisons in combination with logical operators.
  • Relative filtering is only available for the Date field and allows to filter data relative to now.


Basic filtering

Shows a list of values which is scrollable and searchable. Select one or more values to include in the report. To select most values, first select Select all, then clear values that you don't need.



Note: The description of the filter is shown on top.


Advanced filtering

Allows to create complex conditions to select values by using all kinds of comparisons (e.g. contains, starts with) and logical operators. Example: Show all Machines that start with 'WV' or with 'L'.



The Advanced filtering of the Date field allows to select any time period. Example: the first quarter of 2024 is selected.



Important: All fields are case sensitive.


Relative date and time


This filter type is only available for the Date field and shows data of:

  • A certain number of days, weeks, months or years relative to now. (left example)
  • A certain period from now to somewhere in the past. Today's data can be included. (right example)




Default filter

Default report views initially show the data of the last week including today, and of all machines of your subscription.

For some report types, all filters can be reset to the default (click Reset filters). The Date is set to the last month and all other filters are removed.



Visuals can also be filtered individually. See the article Data exploration for more information.
