A color set defines which colors are put on the creel of the machine.


  1. Under Definitions (section SCHEDULING), open Yarn related, then Color set.
  2. Click Click new .

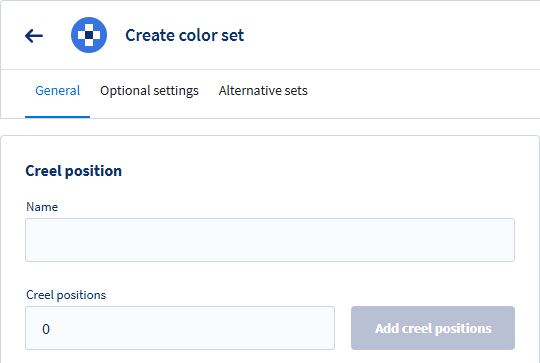

  3. Enter a Name for the color set or select a suggested Name.
  4. Enter the number of Creel positions.

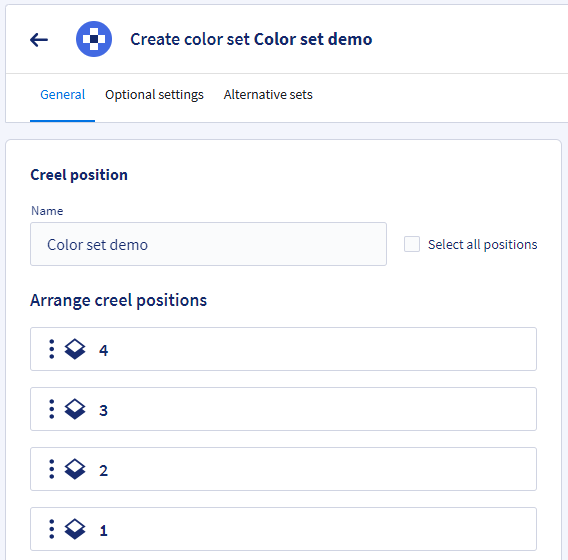

  5. Click Add creel positions to create the creel positions.

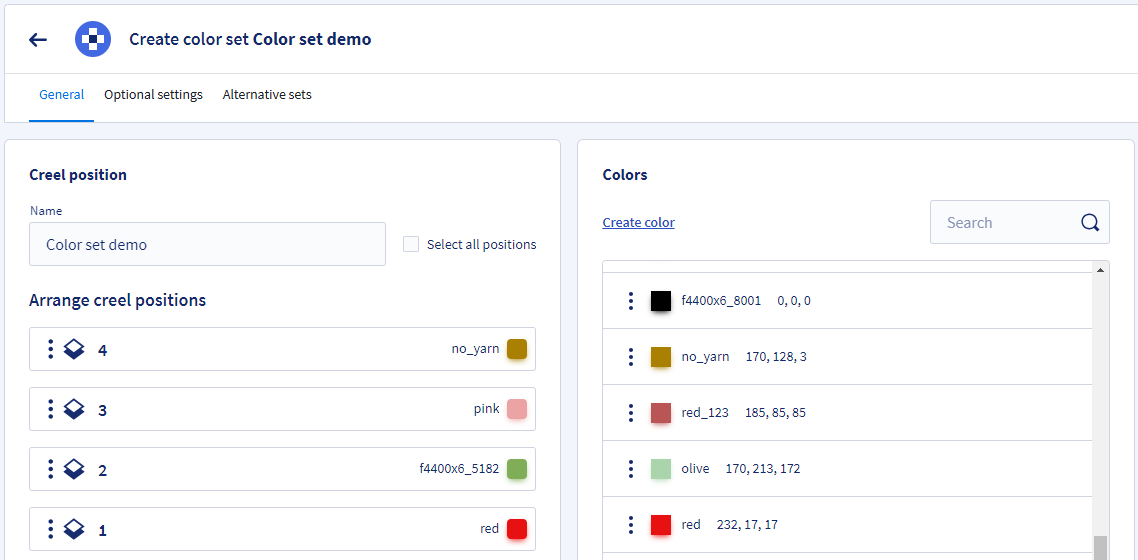

  6. Add a color for each creel position with drag and drop from the right to the left pane.


    If all positions of the creel have the same color, select Select all positions and click of the color.


  7. If a color does not yet exist, you can click Create color to add it. See also Creating a color.
  8. In the Optional settings tab, you can enter the Technical code.
  9. In the Alternative sets tab, you can select alternative color sets.
  10. Click Save.


Now you can use the Color set to create a Colored yarn set.


This module shows the Custom settings button in the top right corner. For the Name generation pattern, see this article: Name generation pattern.
