To create double width Carpet orders (under Production orders in the SCHEDULING section):

  1. Adjust the settings of the machine to make it a double width machine. See Adjust machine settings to create double width PO.
  2. Create a quality with a double width weave structure. See Create a quality for double width.
  3. Create the production order like a normal production order.


In the Build and Verify step of creating a carpet order, you will see the difference between the top and the bottom carpet.


Example:

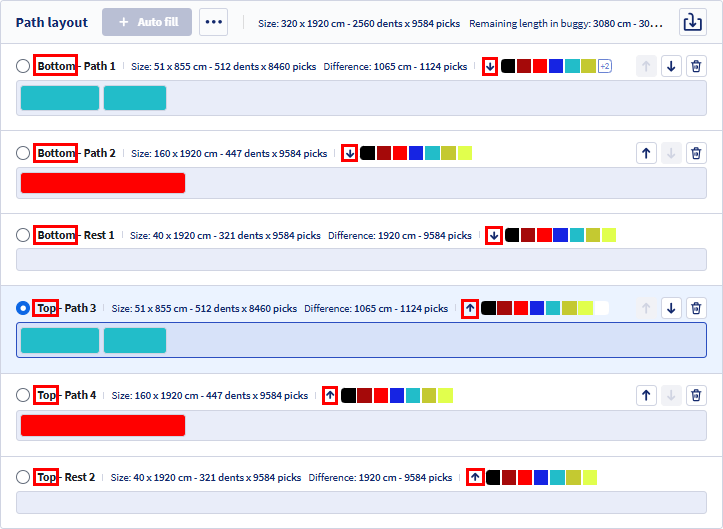

Build step:

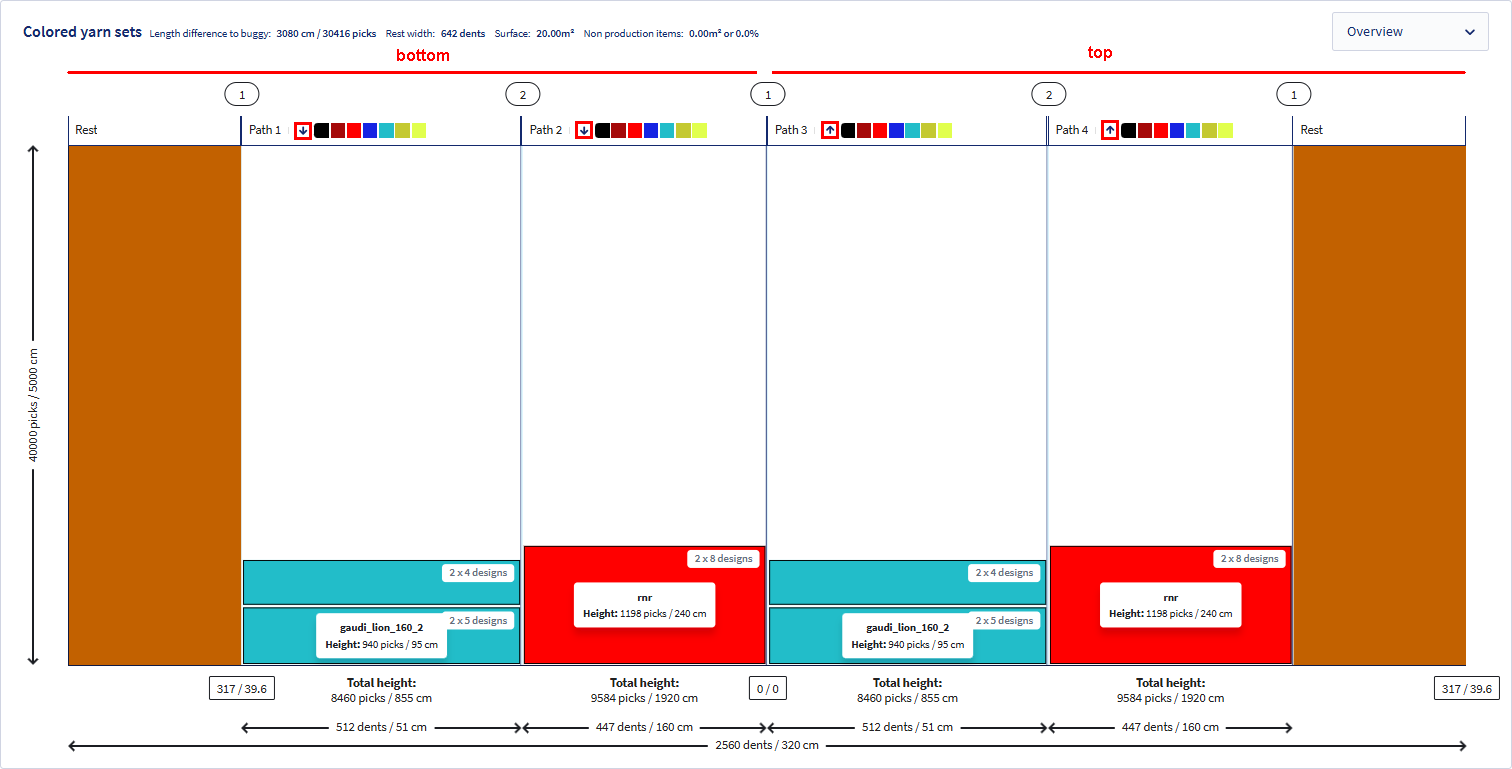

Verify step: The top carpet starts at the middle of the total width.
