Once an carpet production order has been completed you can Print a weaving order.

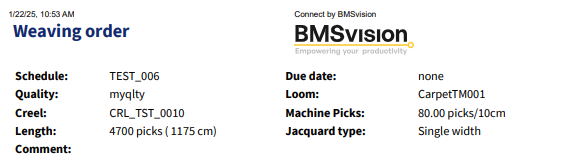

Header

The header shows general information such as schedule, quality, creel name, etc.



  • Length: Length of longest path / amount of picks the schedule has.
  • Date: Due date that can be set while creating the production order.


Body

After the header for each path more information is given (example):




IMPORTANT
m² and quantity are commercial values so for bottom and top carpetand only take into account production items.


Seeing unexpected commercial values?

Make sure the pick and reed density on the quality is set correctly. This density is also shown in the header as Machine picks.


What is not included in the list?

  • Pathlabels.
  • Jute before and or after.
  • Rest when one path is longer than another path.


Example calculation

Path 1

Width: 512 - Length 41323 - m²: 17.25


  • Width: 512 dents
    • Take largest with of any design in that path.

  • Length: 41323 picks
    • Jute before: 10 picks.
    • Pathlabel before: 56 picks.
      5x design guadi_portret_160_c5b54f: 802 * 5 (quantity is commercial so 10 /2)
    • Pathlabel after: 56

  • M²: 17.25 m²
    • M² is commercial = actual m² of carpets that are able to be sold.
    • m² of 1 carpet guadi_portret_160_c5b54f: (150.59 * 114.57)/10 000 = 1.7253 m² each carpet.
    • Quatnity 10 * 1.7253 m² each carpet = 17.25 m².
